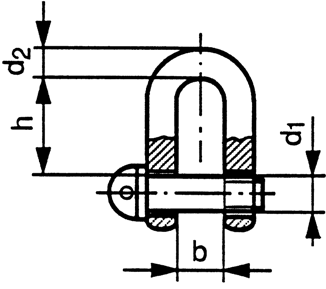

d1
5
d2
4/5
b
7
h
15,5
Allowable load in kN
1
6
5/6
8
18
1,6
7/8
11
24
2,5
10
9/10
14
30
4
11 (≠DIN)
22
44
-
12
10/12
17
36
6,3
14 (≠DIN)
28
53
16
13/15
21
49
19 (≠DIN)
19
38
74
20
17/19
27
61
19/21
67
21/23
33
73
25
25 (≠DIN)
51
100
28 (≠DIN)
57
115
32 (≠DIN)
32
64
127
38 (≠DIN)
37
76
152
Material Surface treatment Packaging Code
St Zipl Standard 16813
